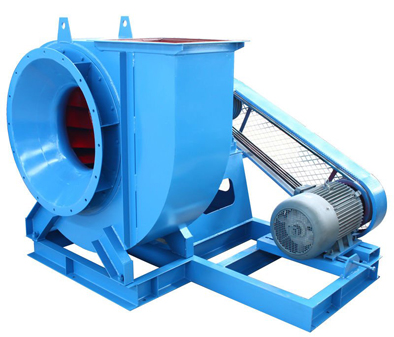

| Y5-47 centrifugal draught fans for boilers |
|
|
| |
| It is characterized by low noise, simple structure, flexible regulation of blowing rate and wind direction. It is applicable to various natures of coal and industrial boilers that are equipped with a smoke and dust elimination device. The temperature of gas to be delivered shall be less than 250℃. The fan has two ways of rotation, i.e. C and D. If a shock absorber is used, users may directly arrange the fan on the cement ground, without anchor bolts. It is easy to install and debug the fan. |
| |
|
MachineNo.
|
Motor PowerKw
|
Rotation Speedr/min
|
Volume Flow
m3/h
|
Pressure
Pa
|
|
3.15C
|
1.5
|
3250
|
1323-2496
|
1049-716
|
|
1.5
|
2990
|
1218-2297
|
883-608
|
|
1.5
|
2750
|
1120-2112
|
745-520
|
|
4C
|
4
|
3300
|
2751-5190
|
1922-1393
|
|
3
|
2900
|
2417-4561
|
1481-1079
|
|
5C
|
7.5
|
2900
|
4723-8909
|
2324-1687
|
|
5.5
|
2620
|
4267-8048
|
1893-1373
|
|
6C
|
18.5
|
2850
|
8020-15129
|
3364-2452
|
|
15
|
2620
|
7372-13908
|
2844-2069
|
|
7C
|
30
|
2580
|
11529-21747
|
3756-2746
|
|
22
|
2320
|
10367-19556
|
3040-2206
|
|
18.5
|
2200
|
9830-18545
|
2736-1991
|
|
15
|
2050
|
9159-17280
|
2373-1716
|
|
8C
|
30
|
2020
|
13474-25417
|
3001-2187
|
|
22
|
1860
|
12407-23404
|
2550-1853
|
|
9C
|
45
|
1900
|
18045-34039
|
3364-2452
|
|
37
|
1800
|
17095-32247
|
3020-2197
|
|
4D
|
3
|
2900
|
2393-4514
|
1451-1059
|
|
5D
|
7.5
|
2900
|
4723-8909
|
2324-1687
|
|
6D
|
18.5
|
2930
|
8245-13492
|
3550-3168
|
|
22
|
14523-15553
|
2903-2589
|
|
10D
|
37
|
1480
|
19281-31551
|
2697-2246
|
|
11D
|
55
|
1480
|
25663-48410
|
3050-2216
|
|
12D
|
90
|
1480
|
54520-62850
|
3236-2638
|
|
