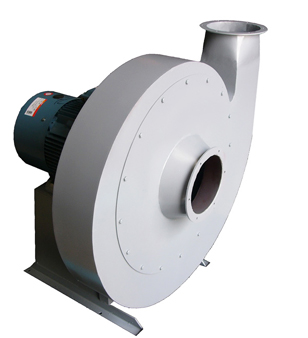

| 5-30 series medium-pressure centrifugal fans |
|
|
| |
They are designed and optimized based on TB fans introduced from Taiwan and according to users’ practical situation and requirements in China. They are characterized by stable operation, low noise, high efficiency, wide power range, compact structure and beautiful appearance.
This series of fans have been extensively applied to large high-speed film blowing unit, bag blaster unit and other large plastic machines. Meanwhile, they may be used in light textile, petrochemical and mine industries as supporting facility. They are ideal substitutes for the imported. This series of fans have aluminum alloy impellers. Equipped with an anti-explosion motor, they may be used as anti-explosion fans. |
| |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow m3/h
|
Pressure Pa
|
|
5-30-1
|
1.5
|
2800
|
1470
|
2400
|
|
5-30-2
|
2.2
|
2840
|
1620
|
2900
|
|
5-30-3
|
3
|
2840
|
2100
|
3150
|
|
5-30-4
|
4
|
2880
|
2520
|
3236
|
|
5-30-5
|
5.5
|
2900
|
3000
|
3850
|
|
5-30-6
|
7.5
|
2900
|
3500
|
4300
|
|
5-30-7
|
11
|
2930
|
4200
|
5300
|
|
