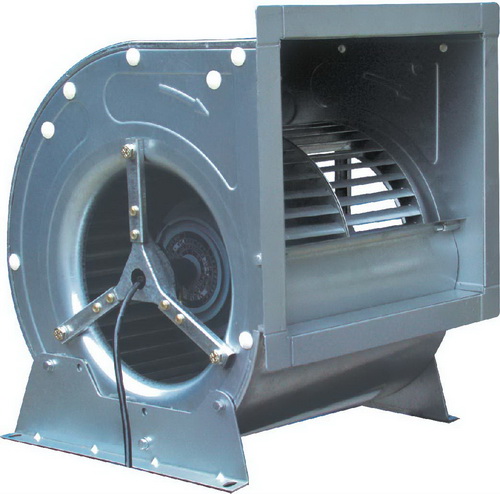

DCF series low noise air conditioning fan

　　The low noise air conditioning fan with outer rotor is a kind of new energy saving fan. They have an advanced structure, which has the outer rotor motor driving wind wheels directly. They are characterized by high ventilation, small volume, high efficiency, low noise, high flow, high wind pressure and stable operation on the whole. They deliver inflammable and noncorrosive gas, in which content of dust and other solids is less than 120mg/m3 and that temperature is in the range of -20℃ to 80℃.

Machine No.	Motor Power Kw-P	Volume Flow m3/h	Pressure Pa	Static Pressure Pa	Noise dB(A)
2.0A	0.18-4P	656-1072	274-251	265-230	≤62.5
	0.25-4P	820-1642	289-282	277-236	≤63
	0.32-4P	1262-2105	278-284-257	250-182	≤63.5
	0.12-6P	716-1353	123-127-117	115-85	≤60
	0.18-6P	1104-1749	132-105	112-53	≤61
2.25A	0.32-4P	1003-1608	376-368	365-340	≤70
	0.37-4P	1239-2157	361-337	345-287	≤71
	0.45-4P	1661-2635	368-346	337-271	≤71
	0.55-4P	1836-3012	351-292	316-196	≤72
	0.18-6P	1263-1960	174-179-169	154-120	≤60
	0.25-6P	1465-2390	163-126	139-65	≤60
2.50A	0.55-4P	1233-2188	491-458	476-413	≤73
	0.8-4P	1600-2953	471-463-527	453-412-445	≤75
	0.25-6P	971-1896	206-194-236	196-180-202	≤66
2.80A	1.1-4P	2200-3537	457-520	424-454-435	≤78
	1.5-4P	2695-4698	539-575-485	488-508-336	≤80
	0.37-6P	1741-3049	246-277-266	226-233-203	≤68
	0.55-6P	2250-3577	309-311-252	274-165	≤69
3.0A	1.5-4P	2877-4508	662-661-748	615-591-633	≤84
3.0A	0.55-6P	2150-3124	327-379	299-298-322	≤70
3.15A	1.8-4P	2637-4337	716-699-756	680-639-658	≤85
	2.2-4P	3517-5352	748-745-864	678-704-701	≤86
	0.8-6P	2410-4208	323-337-212	290-291-114	≤73
3.55A	3-4P	3786-5462	906-920	861-826	≤87
	4-4P	5203-8278	983-1102	898-905-885	≤87
	0.8-6P	2697-4510	379-371-427	356-332-363	≤73
	1.1-6P	3153-5336	401-463-457	369-396-367	≤74
4.0A	1.5-6P	2528-5300	538-544-532	526-478	≤77
	1.8-6P	3673-5939	554-561-529	529-462	≤78
	2.2-6P	3281-6881	566-579-687	546-519-597	≤79
4.5A	4-6P	5549-9909	751-845	714-701-730	≤81
4.5A	5.5-6P	6135-12570	755-975	710-704-788	≤84
5.0A	6-6P	6080-12538	914-1053	887-938	≤85
5.0A	7.5-6P	7480-15466	919-1110	878-936-923	≤86
