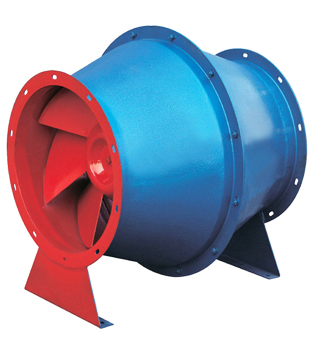

    GXF oblique flow fans


    It has a drum structure. The small air inlet and outlet will accelerate the rate of air flow. It has a high pressure coefficient. In the case of same device number with general axial flow fans, the flow and pressure of it will be higher than those of general axial flow fans. Therefore, they are especially applicable to the place with a small room of pipeline installation. The fans may be extensively applied to industrial and mining enterprises, hotels, museums, gyms, and so on for pipeline pressurization, and air blowing and exhaust, and ventilation of high-rise and common buildings. The temperature of gas to be delivered shall be in the range of -20 to 80℃; and the  dust content in the gas shall not be more than 100mg/m3.


    Machine No.
    Motor Power Kw
    Rotation Speed r/min
    Volume Flow
    m3/h
    Pressure Pa
    Pressure Pa
    3.0F
    0.25
    1400
    864-2592
    179-125
    ≤64
    3.5S
    0.18
    910
    908-2725
    107-75
    ≤59
    3.5F
    0.37
    1400
    1372-4116
    243-170
    ≤67
    4.0S
    0.25
    910
    1356-4068
    139-97
    ≤67
    4.0F
    0.75
    1400
    2048-5163
    318-222
    ≤76
    4.5S
    0.37
    910
    1931-4862
    177-131
    ≤68
    4.5F
    1.1
    1400
    2916-5832
    403-308
    ≤77
    5.0S
    0.75
    910
    2648-6676
    218-152
    ≤71
    5.0F
    2.2
    1420
    4000-10084
    498-347
    ≤80
    6.0S
    1.5
    960
    4576-11441
    312-233
    ≤75
    6.0F
    5.5
    1450
    6912-17425
    717-500
    ≤84
    7.0S
    3
    960
    7266-18168
    427-318
    ≤77
    8.0S
    7.5
    960
    10846-21697
    558-427
    ≤81
    Prev:DCF series low noise air conditioning fan
    Next:SWF mixed flow fans
