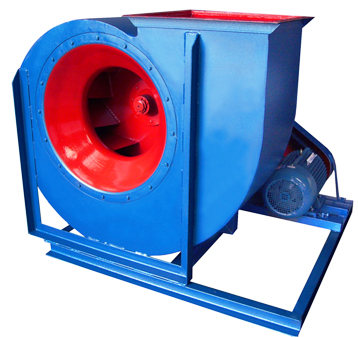

| 4-79 centrifugal fans |
|
|
| |
| They are used for indoor ventilation in common factories and large buildings. It can both input and output gas. The gas to be delivered shall be air and gas that are incapable of spontaneous combustion and noncorrosive to steel and iron materials, and will do no harm to human body. There shall not be stickums in the gas. The content of dust and hard particles shall not be more than 150mg/m3. The temperature of gas shall not exceed 80℃. |
| |
|
No.
|
Rotation Speed (r/min)
|
Power (Kw)
|
Volume Flow(m3/h)
|
Total Pressure (Pa)
|
|
3A
|
2900
|
1.5
|
1970-3830
|
1196-726
|
|
1450
|
0.75
|
990-1910
|
304-177
|
|
3.5A
|
2900
|
3
|
3120-6070
|
1628-981
|
|
1450
|
1.1
|
1560-3040
|
412-245
|
|
4A
|
2900
|
5.5
|
4670-9080
|
2138-1275
|
|
1450
|
1.1
|
2330-4540
|
530-324
|
|
4.5A
|
2900
|
11
|
6640-12920
|
2697-1618
|
|
1450
|
1.5
|
3320-6450
|
677-402
|
|
5A
|
2900
|
15
|
9100-17720
|
3334-2001
|
|
1450
|
2.2
|
4560-8860
|
834-500
|
|
6A
|
1450
|
5.5
|
7890-15320
|
1196-706
|
|
960
|
1.5
|
5230-10100
|
530-314
|
|
