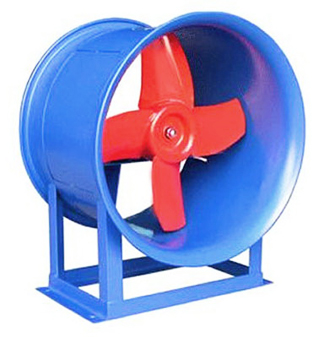

| T35 and BT35 axial flow fans |
|
|
| |
| The products, which are substitutes of Soviet 30K4 fans, adopt a cylinder type wheel structure and improved design in the motor. In the structure, flow losses will be reduced and efficiency of fans will be raised. Thanks to the anti-explosion measures, the BT35 anti-explosion axial flow fans may be used in the noncorrosive places with inflammable and explosive gas as the general anti-explosion ventilation equipment. T35 and BT35 axial flow fans may be used for ventilation or strengthening heating radiation in common factories, warehouses, offices and residences etc. |
| |
|
Machine No.
|
Rotation Speed
r/min
|
Motor Power
Kw
|
Volume Flow
m3/h
|
Pressure
Pa
|
|
2.8
|
2900
|
0.12-0.37
|
1224-2778
|
128-141
|
|
1450
|
0.025-0.04
|
113-1392
|
32-46.6
|
|
3.15
|
2900
|
0.18-0.55
|
1944-4155
|
170.1-247
|
|
1450
|
0.025-0.09
|
972-2078
|
42.5-61.7
|
|
3.55
|
2900
|
0.37-1.1
|
2783-5951
|
216.1-313.6
|
|
1450
|
0.04-0.12
|
1394-2981
|
54-78.4
|
|
4
|
2900
|
0.75-2.2
|
3980-8500
|
274.3-398.2
|
|
1450
|
0.09-0.25
|
1993-4261
|
68.6-99.5
|
|
4.5
|
1450
|
0.12-0.37
|
2832-6067
|
86.8-126
|
|
5
|
1450
|
0.025-0.75
|
0.12-0.37
|
112.6-164.6
|
|
960
|
0.37
|
2839-5768
|
49.1-71.8
|
|
5.6
|
1450
|
0.37-1.1
|
6025-12239
|
140.9-206
|
|
960
|
0.37
|
3989-8103
|
61.8-90.3
|
|
6.3
|
1450
|
0.75-2.2
|
8579-17426
|
178.3-260.7
|
|
960
|
0.37-0.75
|
5680-11534
|
78.2-114.3
|
|
7.1
|
1450
|
1.5-4
|
12280-24944
|
226.5-331.1
|
|
960
|
0.75-1.1
|
8130-17320
|
99.3-145.2
|
|
8
|
1450
|
3-7.5
|
17567-35682
|
287.6-420.3
|
|
960
|
0.75-2.2
|
11630-23624
|
126.1-184.2
|
|
9
|
960
|
1.5-4
|
16560-33937
|
159.5-233.2
|
|
10
|
960
|
2.2-7.5
|
22716-46141
|
197-287.9
|
|
11.2
|
960
|
4-11
|
31914-64825
|
247-361.1
|
|
